High 3500-CFM 16″Inch Electric Radiator Cooler Fan Thermostat Relay Switch Kits

Electric Fan:
16 inch reversible 12 volt electric radiator cooling fan.
Universal fit for all automotive vehicles and engineering projects.
Powerful custom 120 watt motor will keep your engine cool.
Configured as an air puller out of the box.
Blade and wiring can be reversed to make the fan an air pusher.
For radiators, oil coolers, transmission coolers, condensers etc.
Great replacement for belt drive fans to free up horsepower.
Includes mounting feet attachments and complete tie strap kit.

Blade Size – 15 Inches
Blade Type – Curved
Motor Size – 120 Watts
CFM Rating – 3500
RPM Rating – 2050
Amp Draw – 15 Amps
Material – Plastic Shroud/Steel Motor

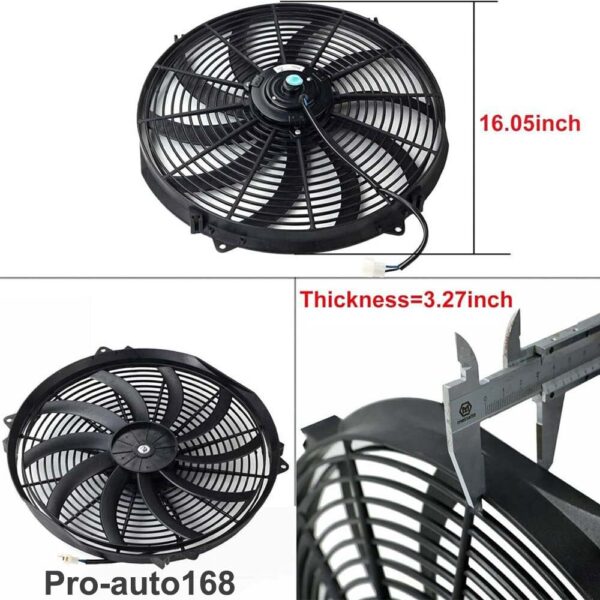

Dimensions – 16.5″ x 15.75″ x 3″ thickness at center and 1″ thickness at edge

Thermostat Kit:
Universal fit for any automotive application or project.

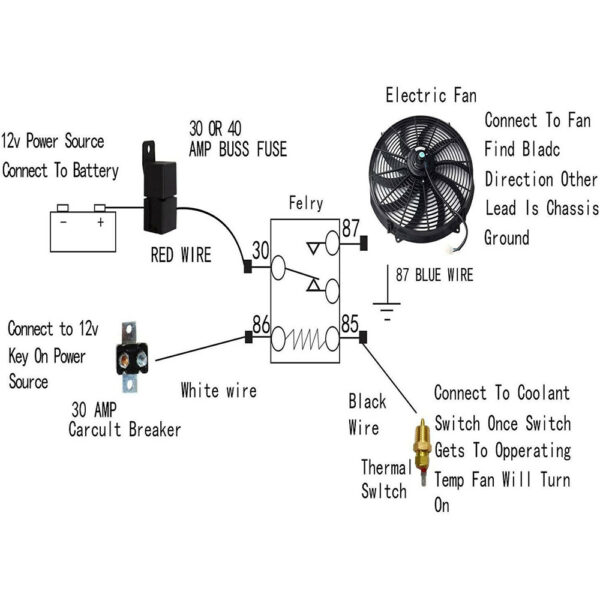

Activates by grounding the electric fans at preset temperature.
180’F turn-on temperature and 165’F turn-off temperature.
3/8″ NPT thread-in brass probe with 1/2″ NPT adapter.
Probe threads into radiator, water outlet hose, manifold etc.

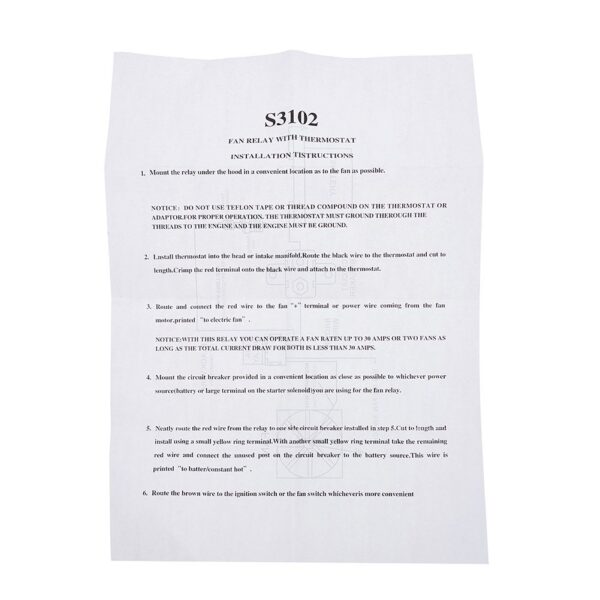

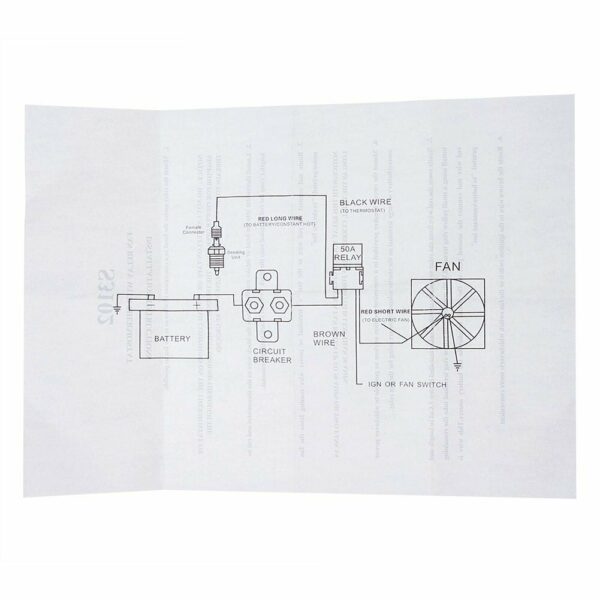

Detailed installation instructions and diagram included.

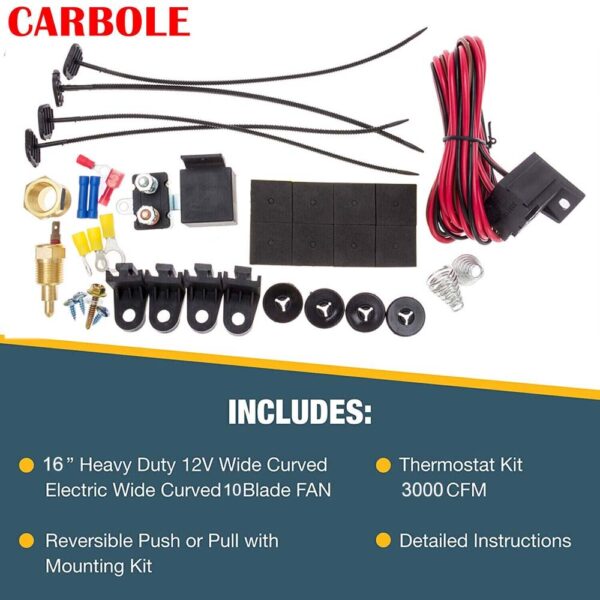

Kit Includes:
(1) – 3/8″ NPT Thread-in Thermostat
(1) – 1/2″ NPT Adapter
(1) – Wiring Harness w/ Mount
(1) – 40 Amp Relay
(1) – 30 Amp Circuit Breaker
(3) – Small Ring Terminals
(1) – Large Ring Terminal
(1) – Harness Mounting Screw
(2) – Butt Connectors
(2) – Sheet Metal Screws
(1) – Female Connector
